Now part of the Tong Engineering Group, Tong Swift Lift mobile pilers and conveyors are renowned for their high quality build and reliable performance across a wide variety of crops including potatoes, carrots and onions.

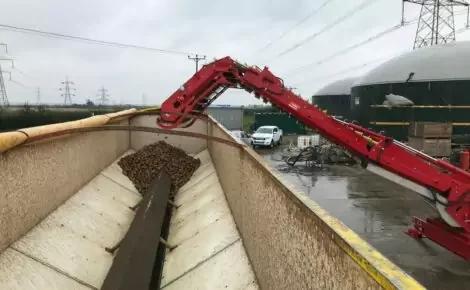

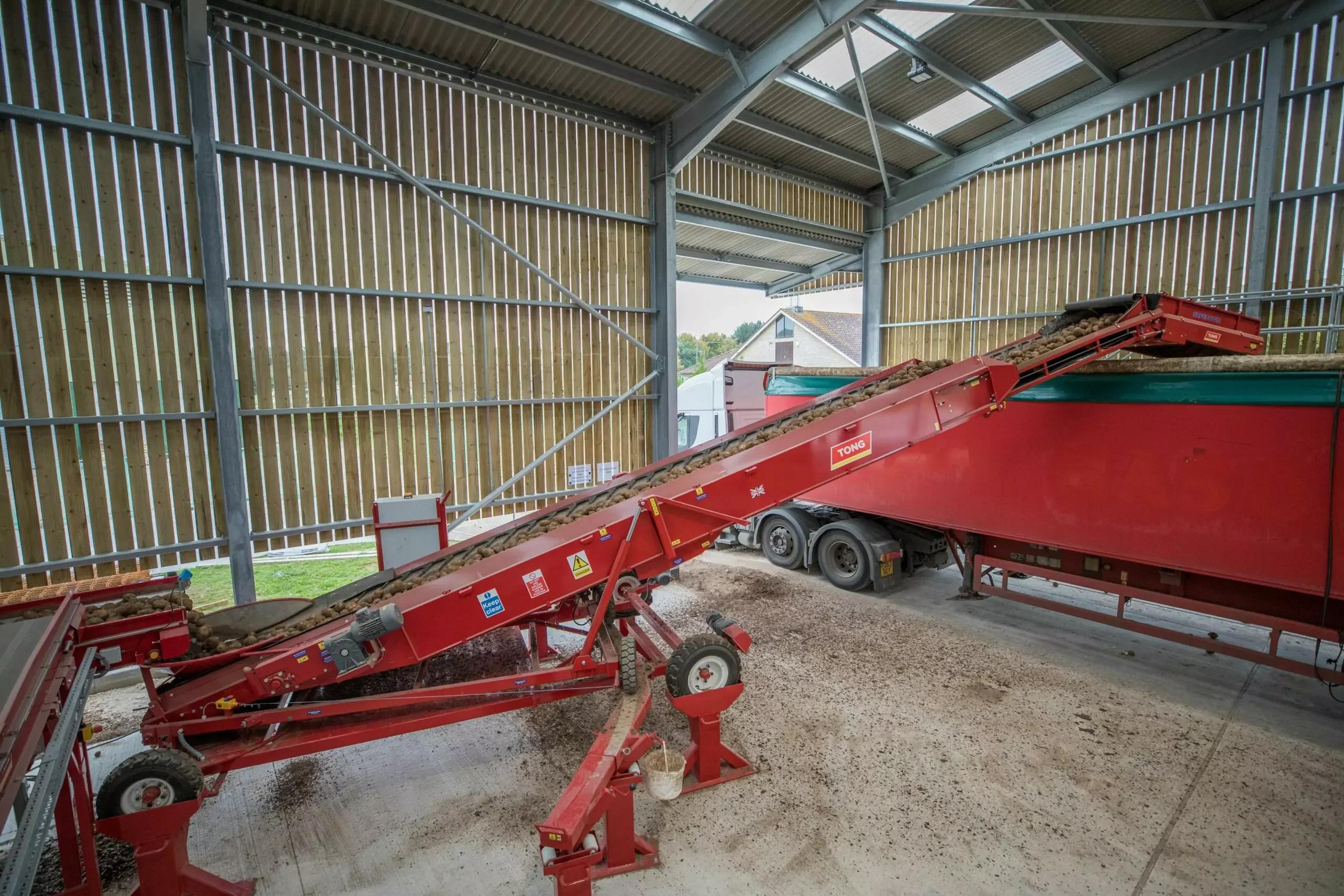

Available in two models; with a 600mm or a 900mm wide belt, the Tong Swift Lift Extendo piler features a gentle ‘safedown’ attachment that lowers into the bulker lorry, reducing the drop during the early stages of loading.

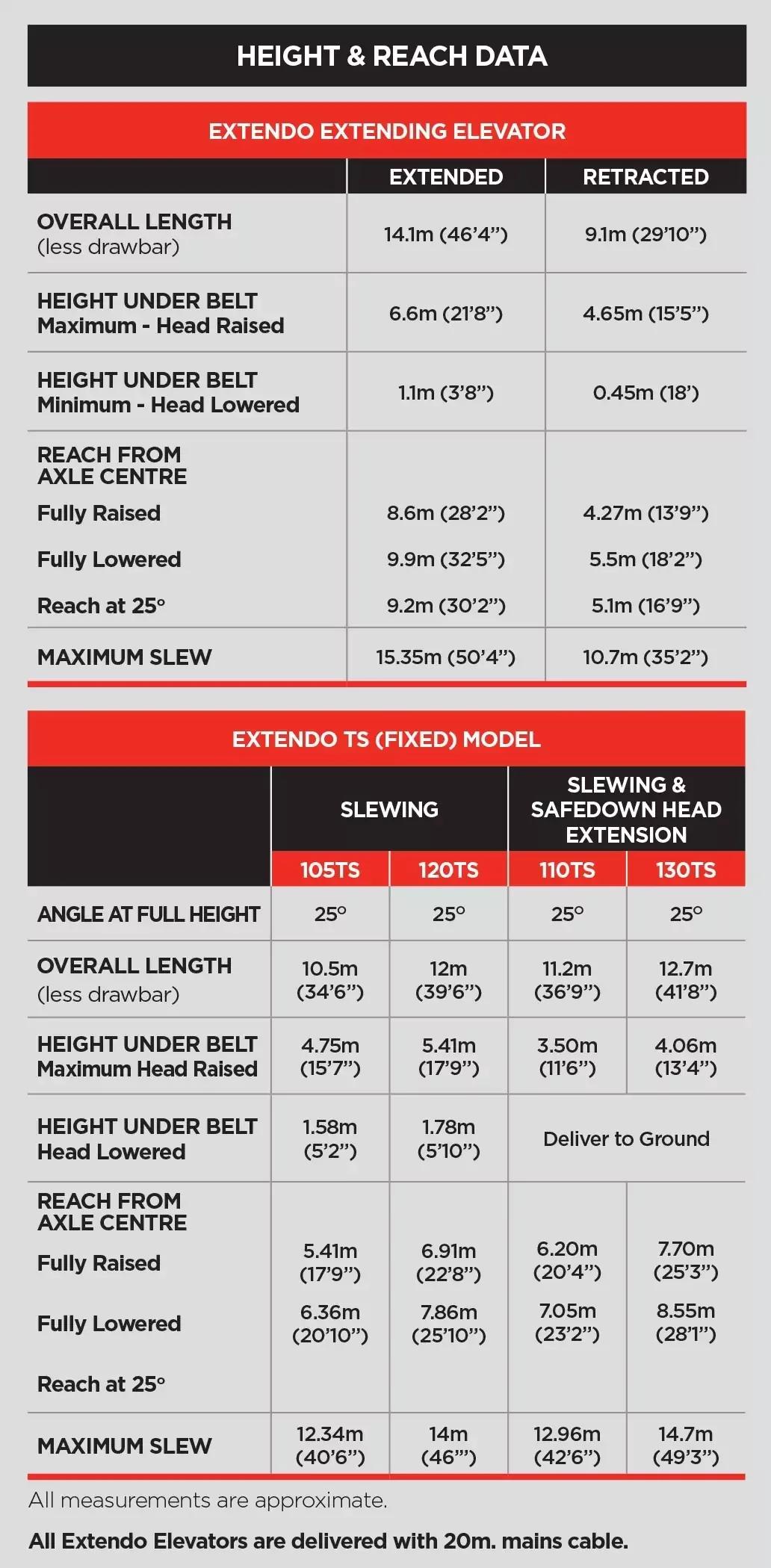

Fully extended, the Extendo crop piler reaches 14.1m long and retracts to only 9.1m, making it easily transportable and convenient to store.

The EasyLoad ensures minimal rollback and exceptionally gentle handling of crop. With a soft rubber 25mm high cleated belt and a ‘safedown’ end for minimal drop.

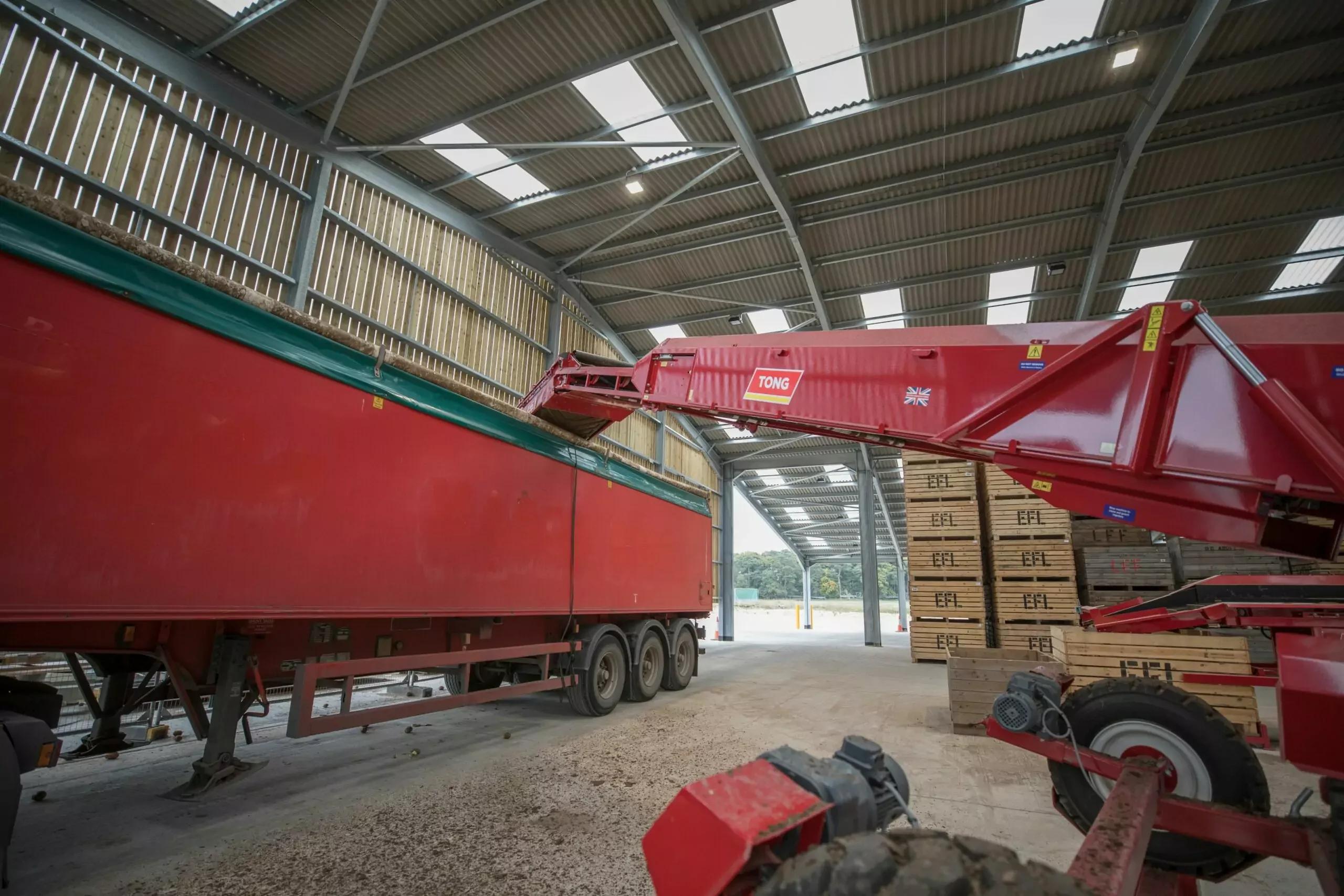

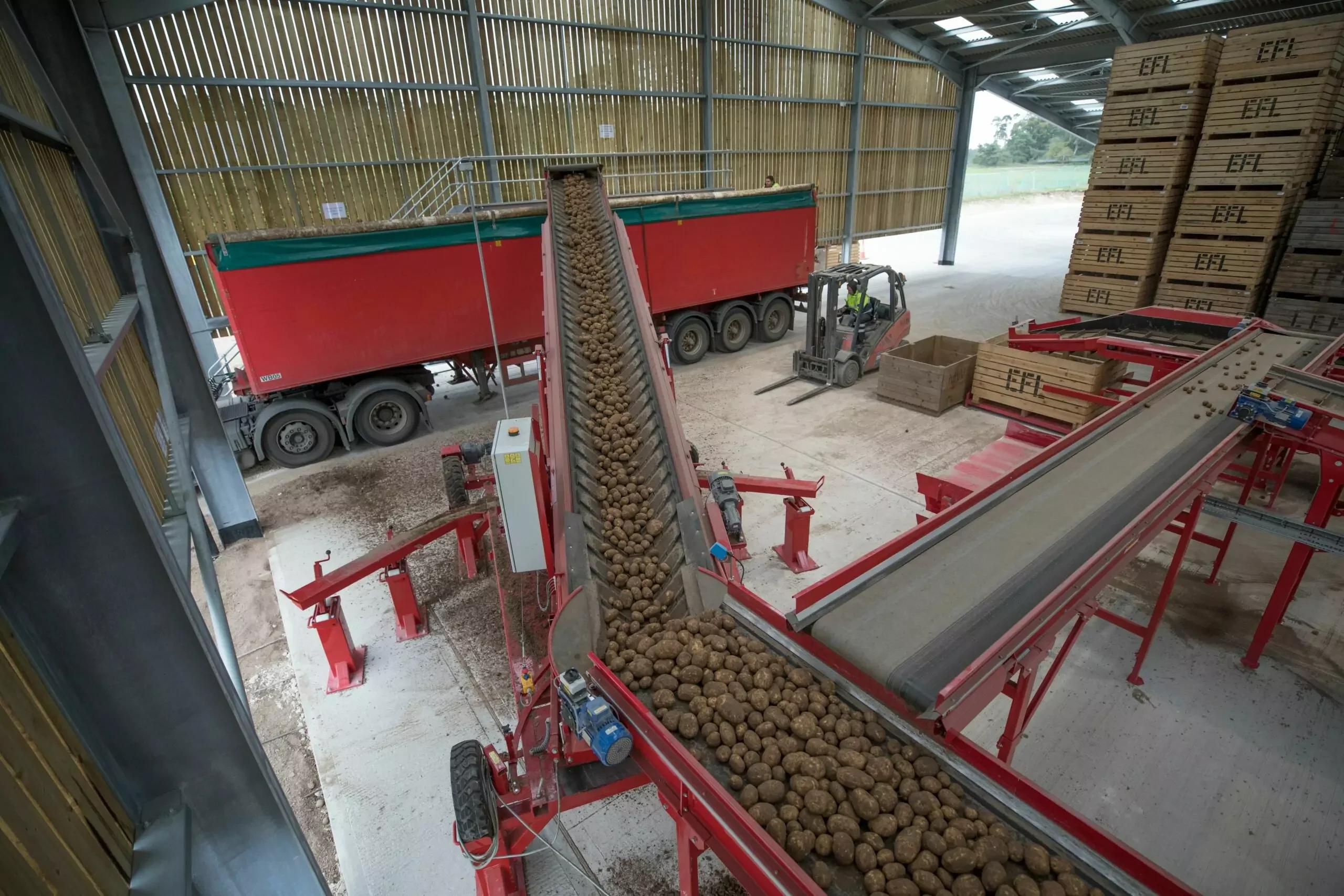

Fully mobile and easily transportable, the EasyLoad offers exceptionally convenient loading. Ideal for loading bulker lorries or store areas, use in the field or at multiple sites

The EasyLoad extending crop piler is specifically designed to offer fast yet gentle handling of crop. Offering reliable performance with throughputs of up to 60 tonnes of crop per hour.

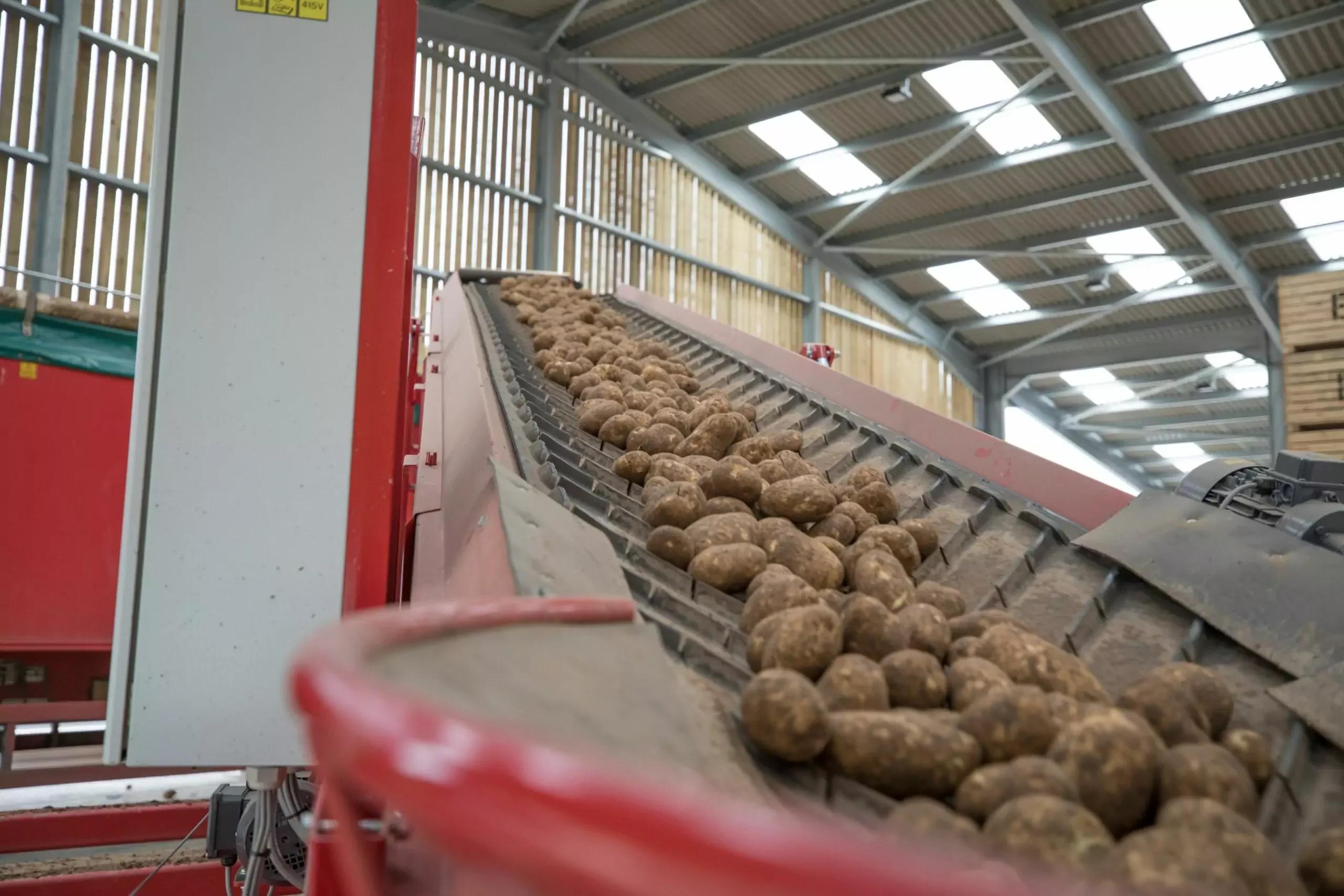

The Tong SwiftLift Extendo mobile piler is designed to offer quick and easy store or bulker loading. The Extendo offers high throughputs whilst ensuring minimal rollback and exceptionally gentle handling of crop with a soft rubber 25mm high cleated belt.

The Extendo ensures the gentlest handling of product with its trademark safedown feature which transfers product through overlays of rubber fingers which prevent free rolling or falling. When fully inclined the safedown end gives a 1.5m downwards reach into bulkers, boxes or to the ground. When set horizontal, overlays are automatically raised to allow clear passage for loading into store, or for grain and other product.

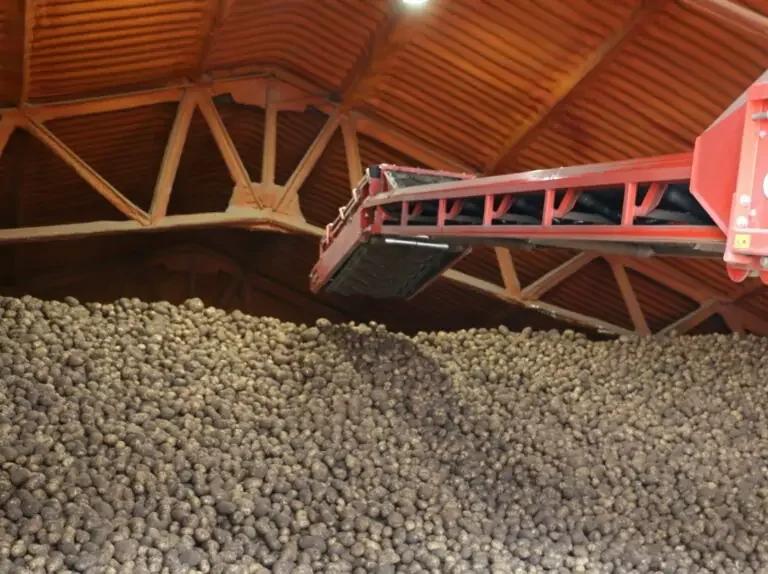

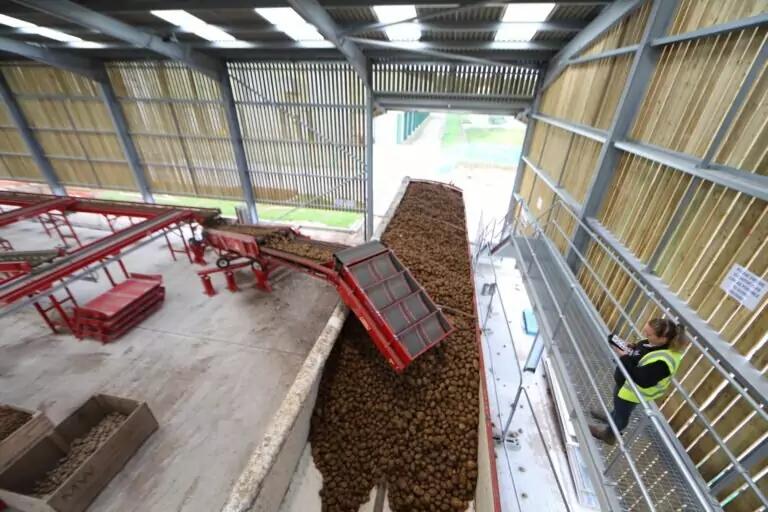

When used for store loading, the automatic slewing platform enables the crop to be evenly distributed across the width of the storage area. The Extendo slews from zero to 15.35m, with preset delay timers at each end of the slew.

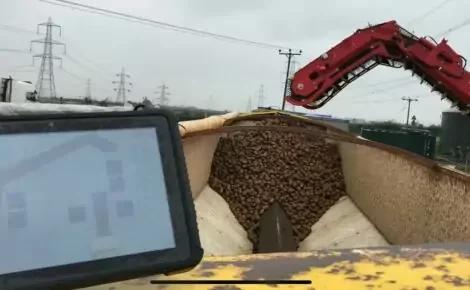

An optional hand held, radio remote control unit enables the operator to control the main elevator functions remotely. Making control even more convenient for operators, up to 20m away from the elevator.

The variable speed drive gives maximum control over the placement of the crop into the store or bulker.

The optional dual drive power transmission allows forward and backward movement of the extending crop piler at the touch of a button.
