Single Bin Filler

Filling Products

For lower capacity bin filling or for applications where space is limited, the Tong single bin filler offers gentle and efficient filling of vegetable bins. With simple operation and optimum safety in mind, the single bin filler from Tong features heavy duty construction for reliable bin filing in the most demanding vegetable processing environments.

Suitable for use on a wide range of vegetables including potatoes, onions, carrots, brussel sprouts and more, when you choose a bin filler from Tong you can be sure your crop is in safe hands.

The single bin filler ensures minimal crop drop throughout the bin filling process, with its hydraulically lifted bin platform keeping the bin close to the feed conveyor at all times.

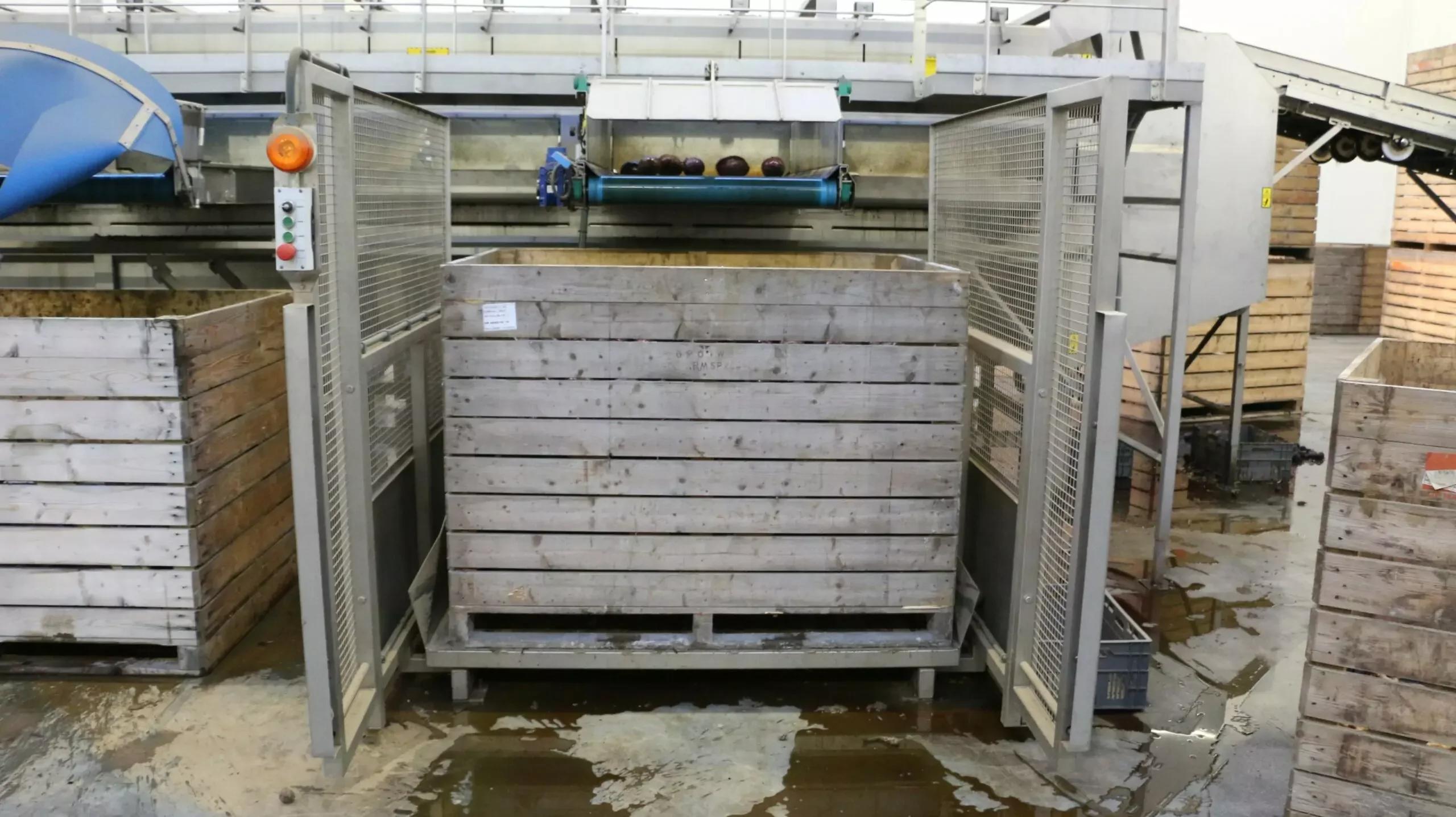

Tong’s single bin filler can be manufactured to accommodate almost any bin size, giving you a custom built bin filling solution that suits your exact requirements

Tong’s single bin filler offers gentle and efficient vegetable bin filling to suit a wide range of needs with outputs ranging from 15 to 25 tons per hour, depending on crop type.

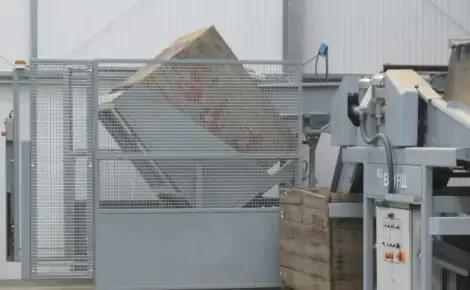

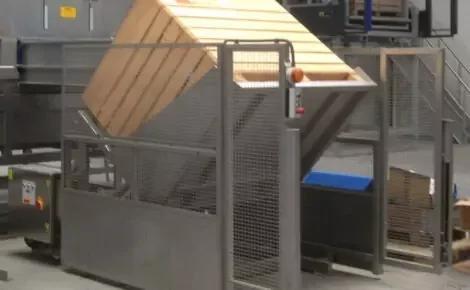

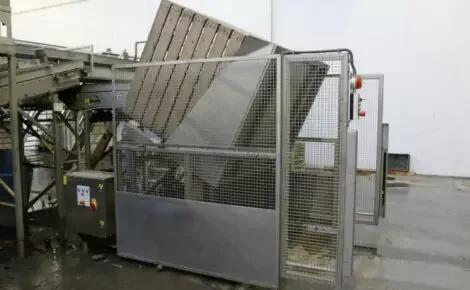

Manufactured with a hydraulically operated bin platform, the single bin filler works by lifting the empty bin in a pivot action over the crop conveyor for gentle transfer at all times.

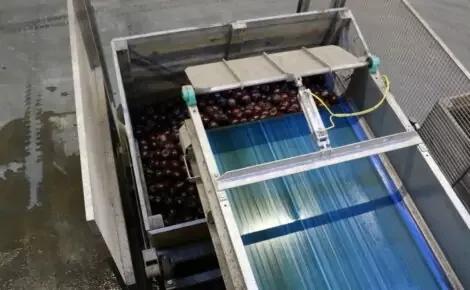

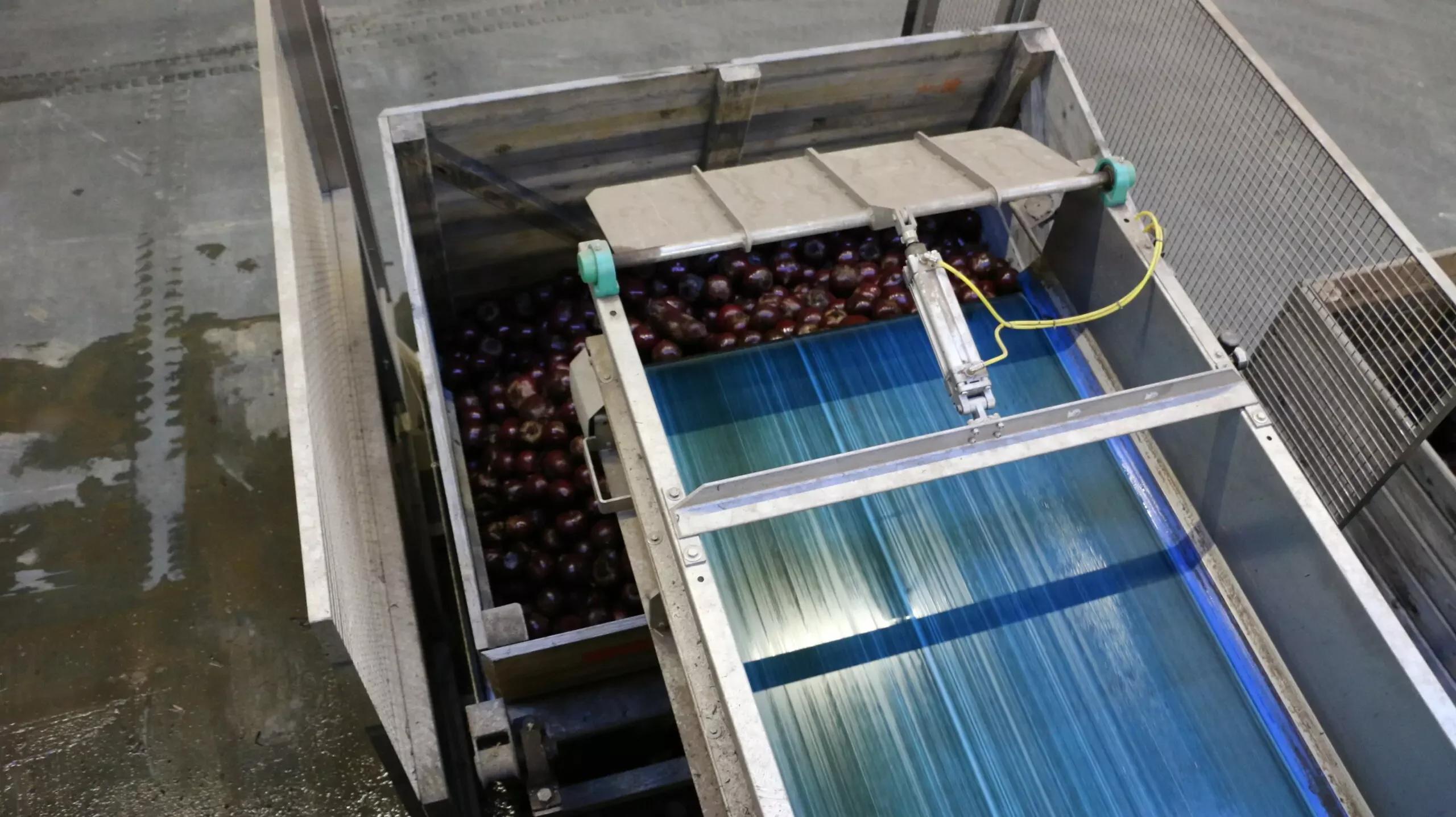

As the crop enters the bin, the crop sensor controls the steady lowering of the bin as it fills. Once the bin is fully down in its original position, the feed belt continues to fill the bin, automatically stopping when the bin is full. When the full bin is replaced with an empty bin, the bin filler detects the empty bin and the cycle continues, for a continuous bin filling process.

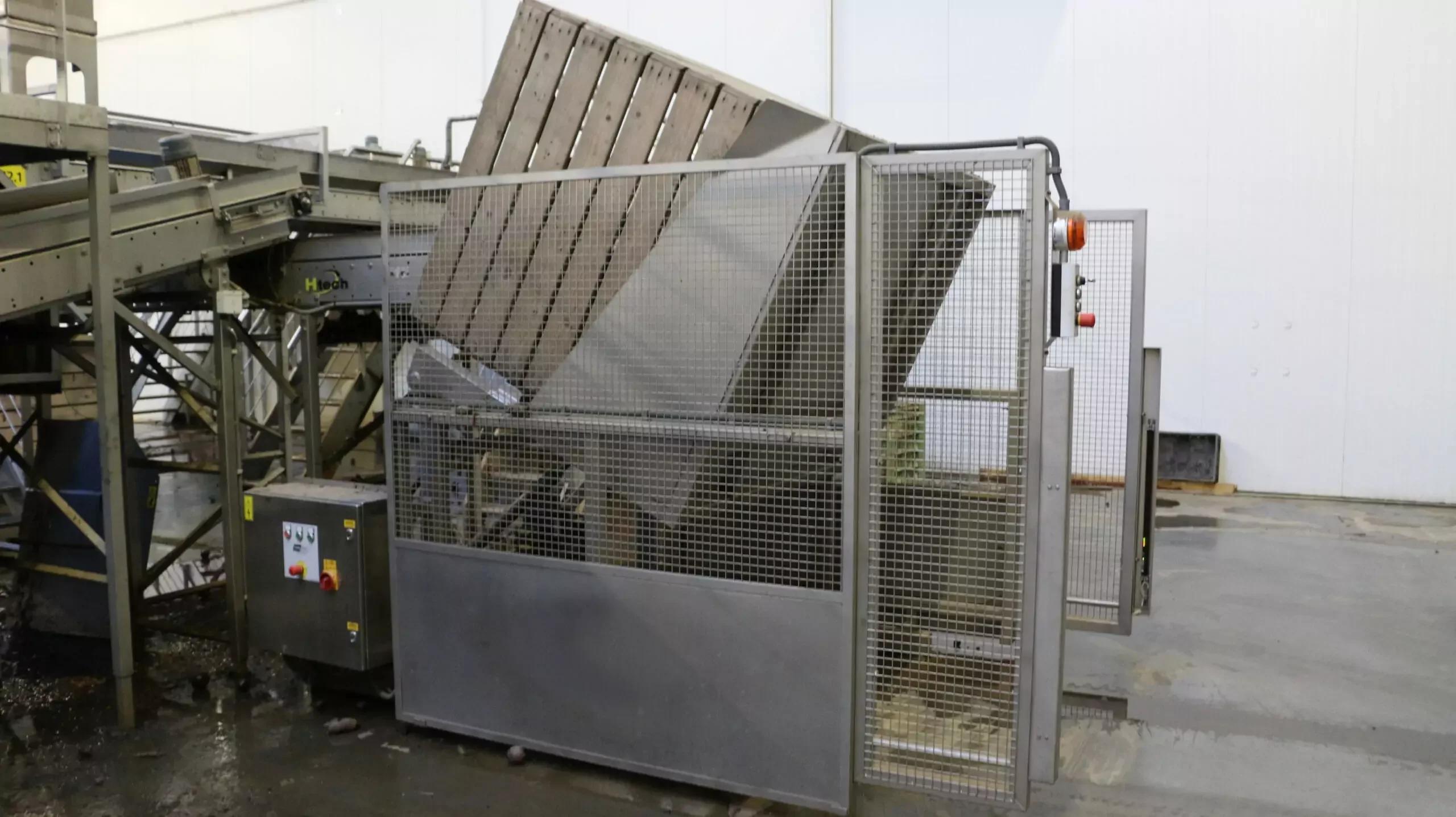

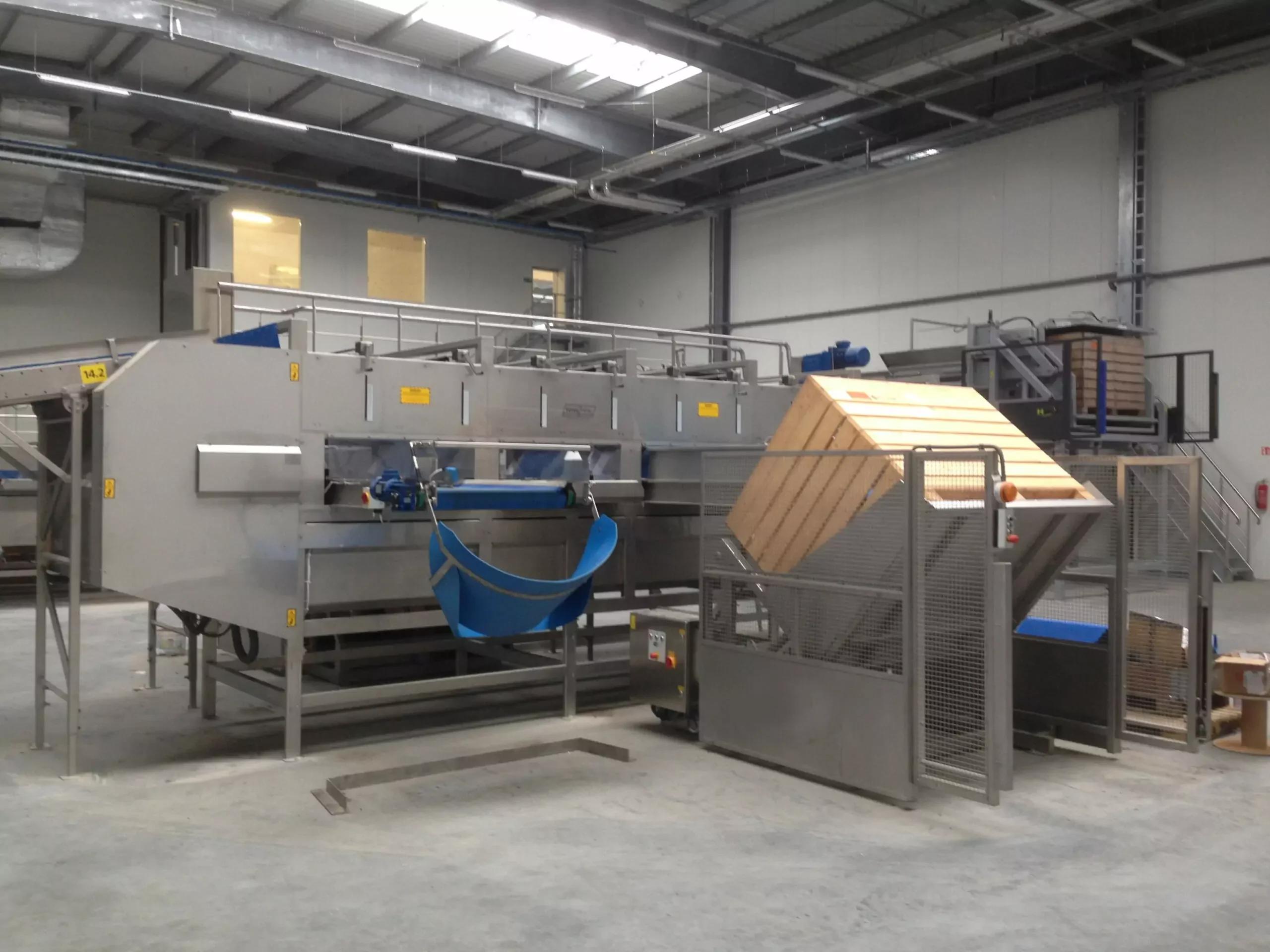

The single bin filler operates with a hydraulic bin lifting system to carefully tilt bins over the crop feed conveyor. Ensuring crop is delivered into the bottom of the bin as closely as possible, for minimal drop and the gentlest handling.

When operated with the option of a buffer conveyor, there is no need for the sizing or processing line to stop whilst the bin is replaced. The buffer conveyor holds crop that is fed onto it from the handling line, until the bin is changed and ready for filling to commence. This option means minimal downtime and maximum throughputs from the single bin filler.

Designed to offer gentle handling of crop, the single filler ensures minimal drop at all times throughout the entire bin filling process, with the pivoted bin staying as close to the feed conveyor as possible at all times.

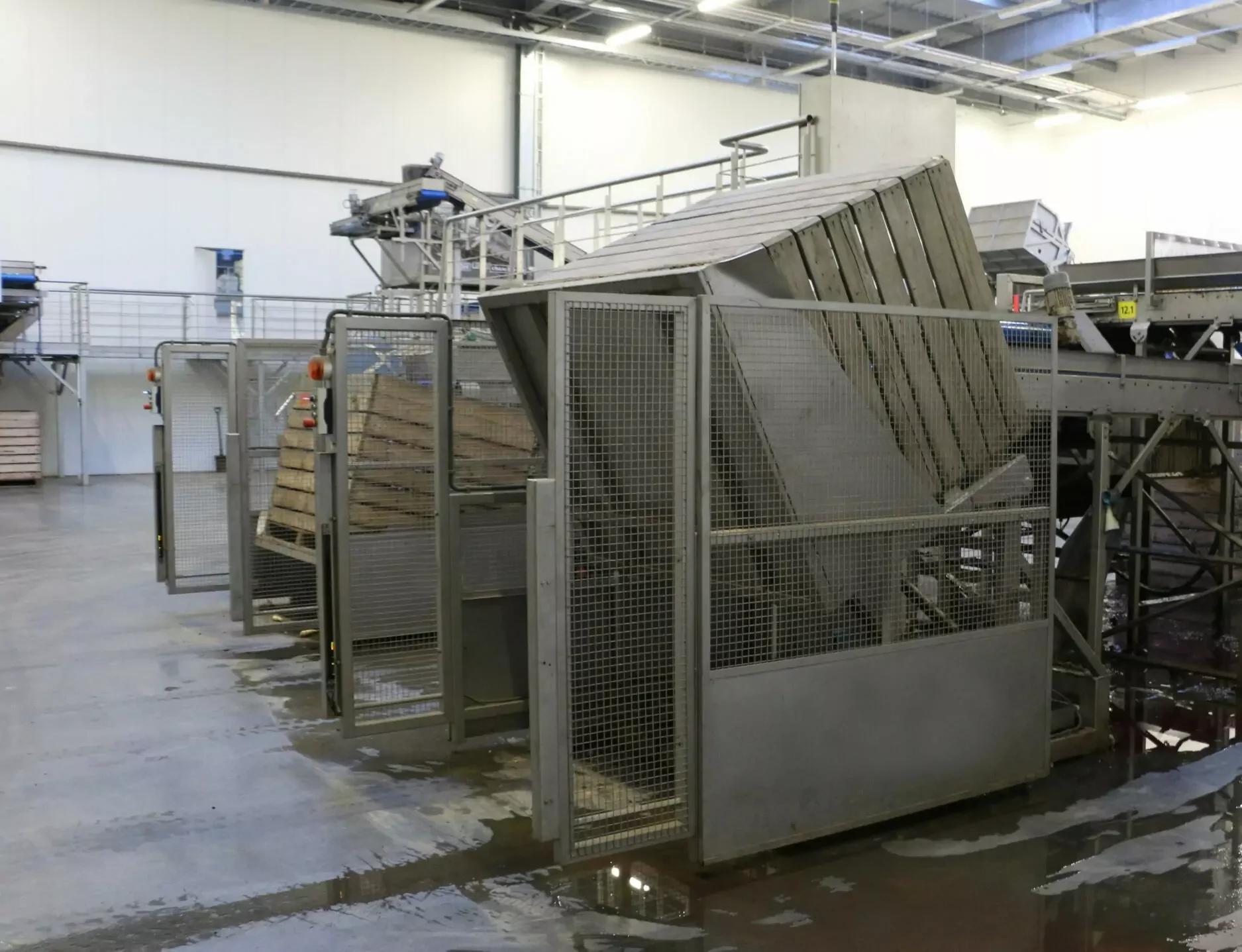

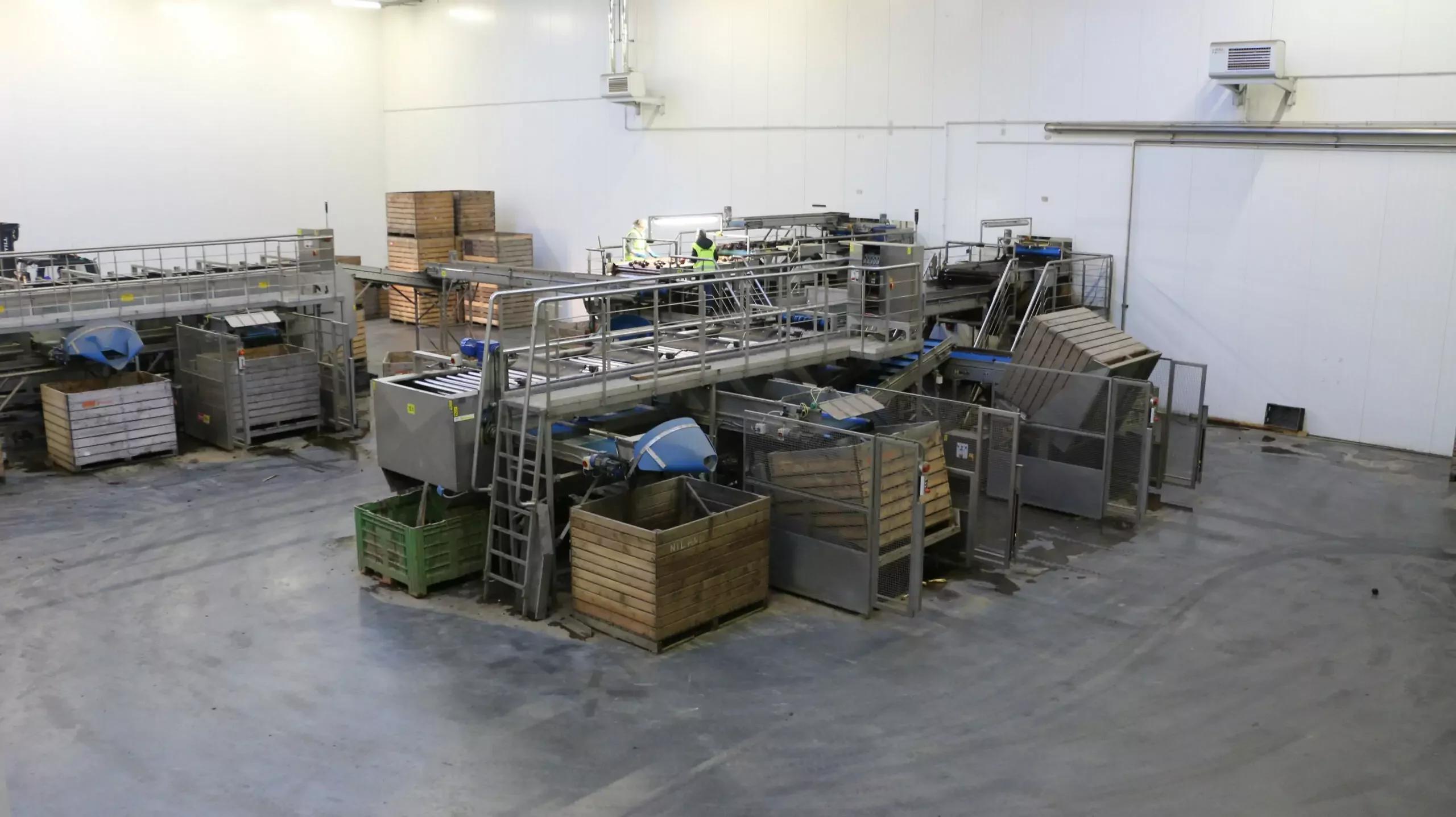

Tong’s single bin filling machine offer a compact design, allowing efficient bin filling with optimum space savings.

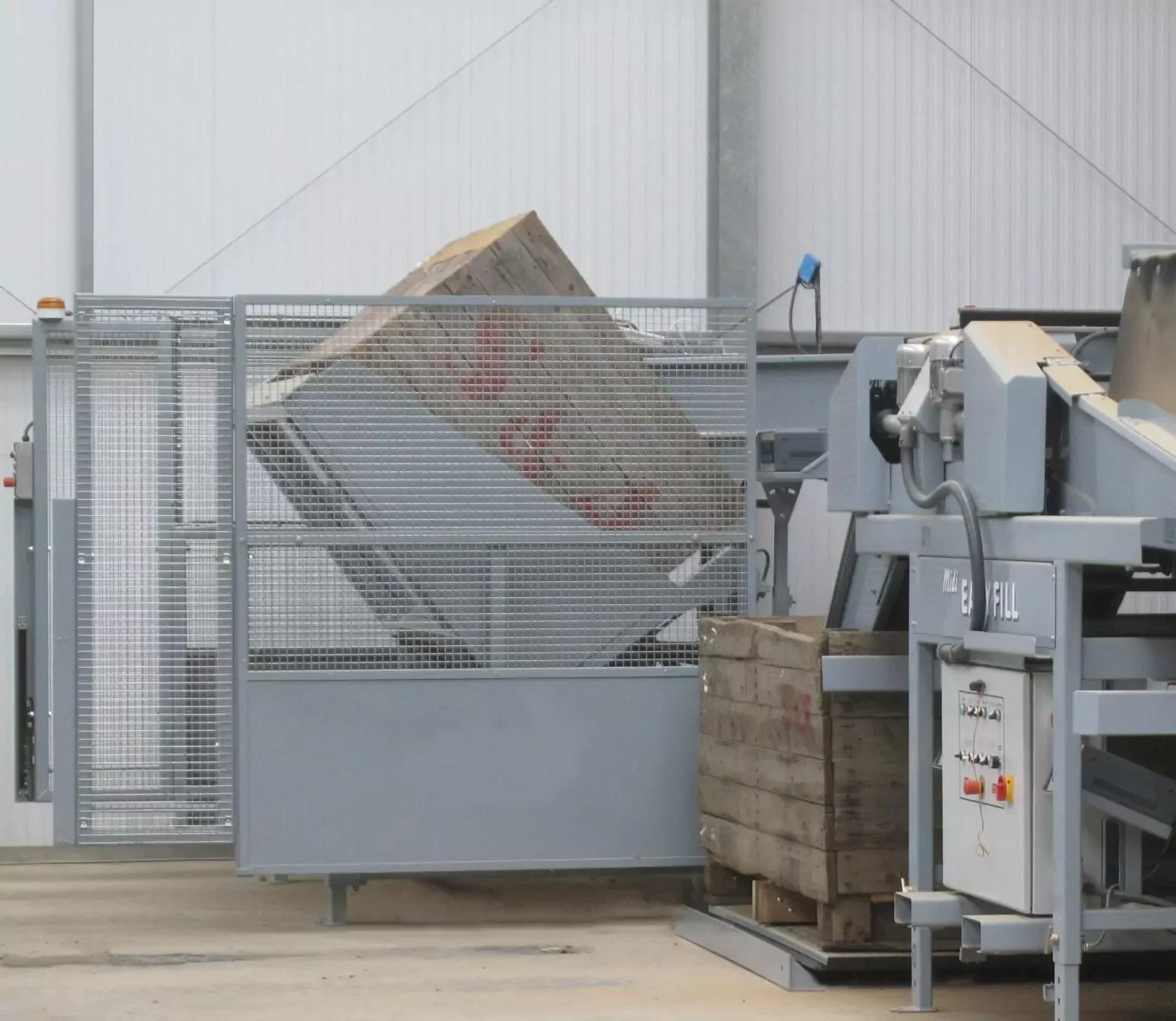

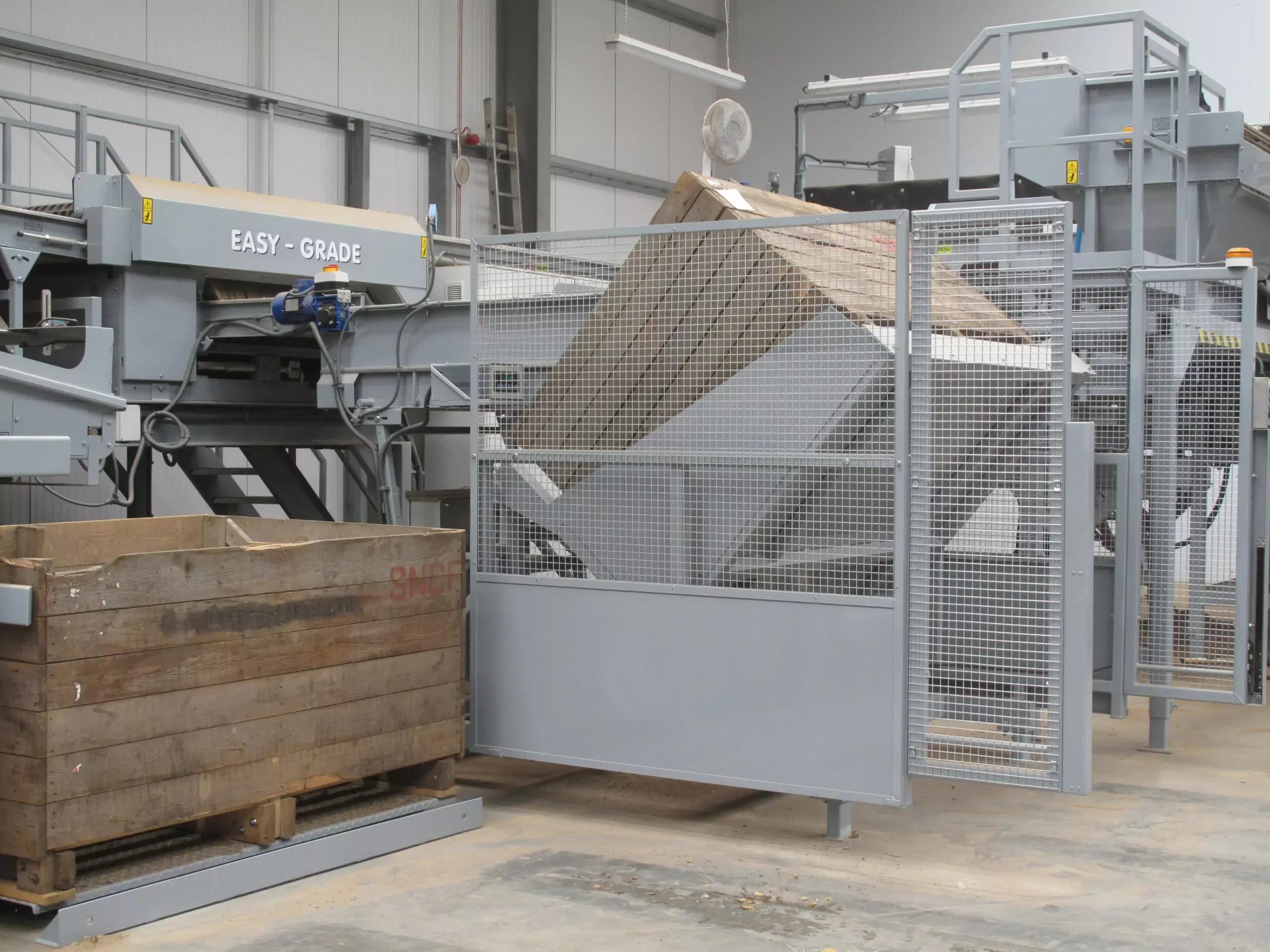

Tong single bin fillers are designed to meet stringent safety standards. Featuring a bin movement siren as well as light guards, which meet the full requirements of EC legislation. The light guards become active when the hydraulic lifting platform to lift and any breaking of the security beams will stop the machine.

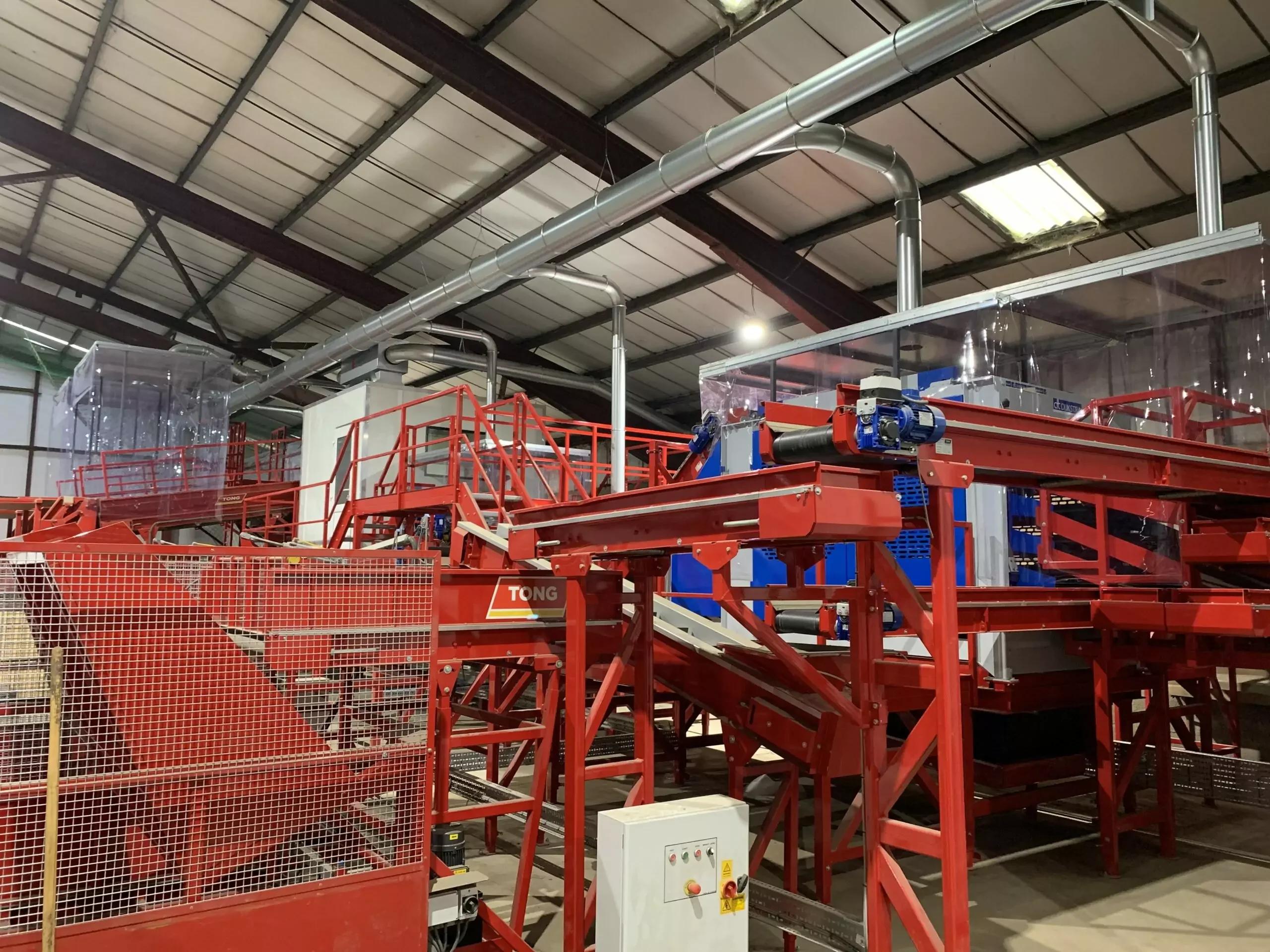

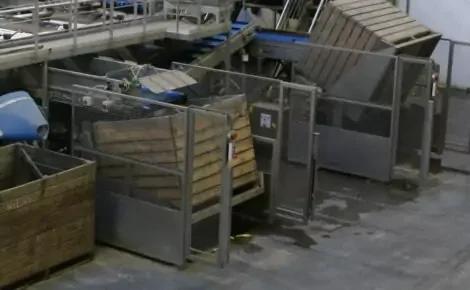

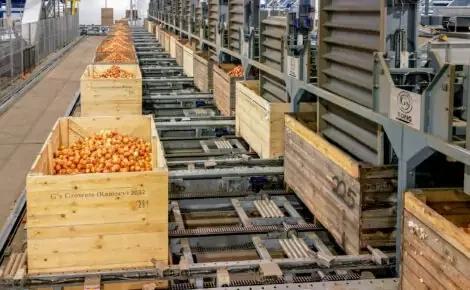

When integrating Tong single bin fillers within a complete vegetable handling line. Tong’s ‘rolling road’ bin feeding system can be specified to automatically present bins to the single filler, and transporting the bins away for the area once filled. The automatic box presenting system offers increased efficiency of your vegetable bin filling process, facilitating fully automated bin filling. This significantly reduces labour requirements and minimises forklift movement.
