Products - 820 Belt Drills

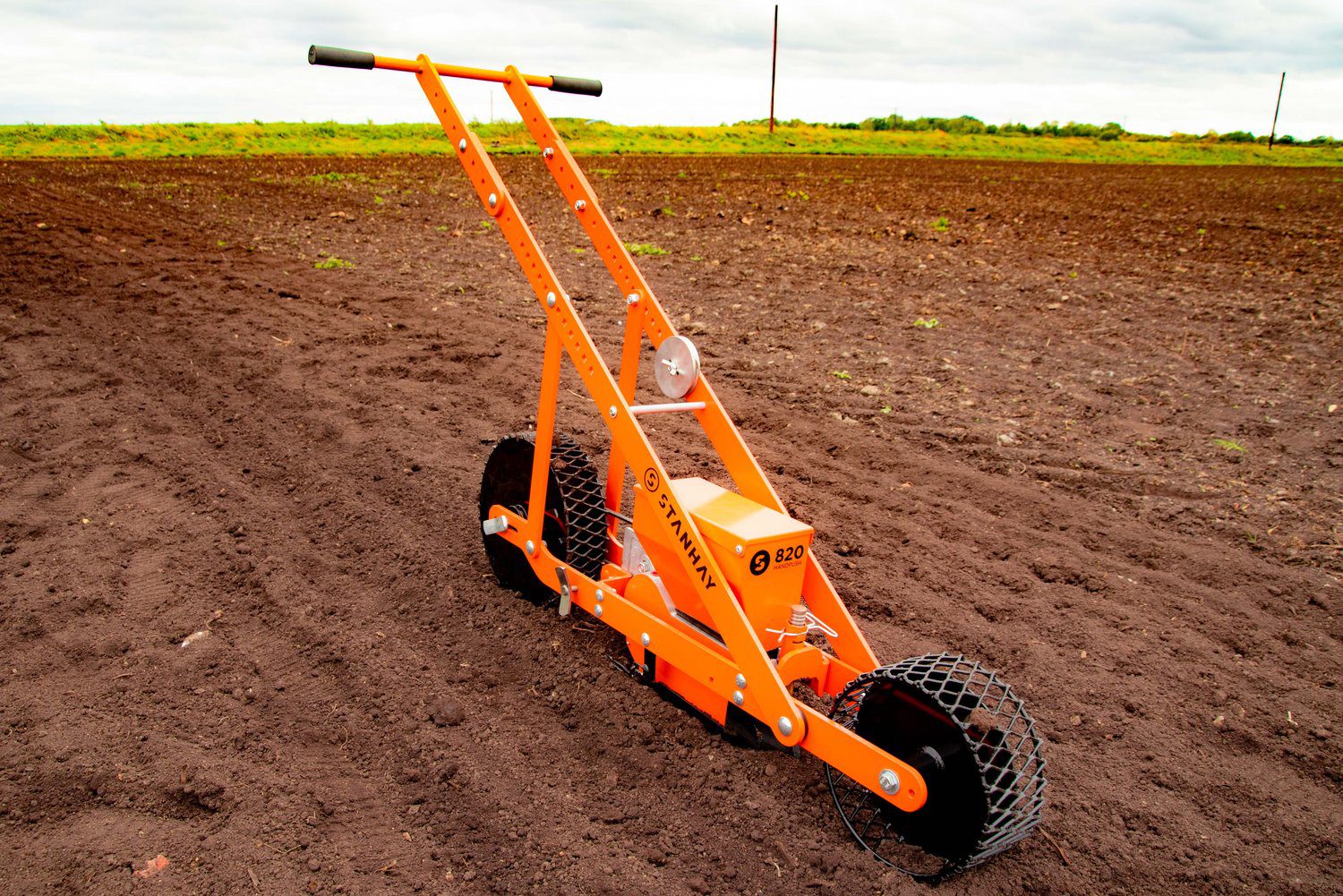

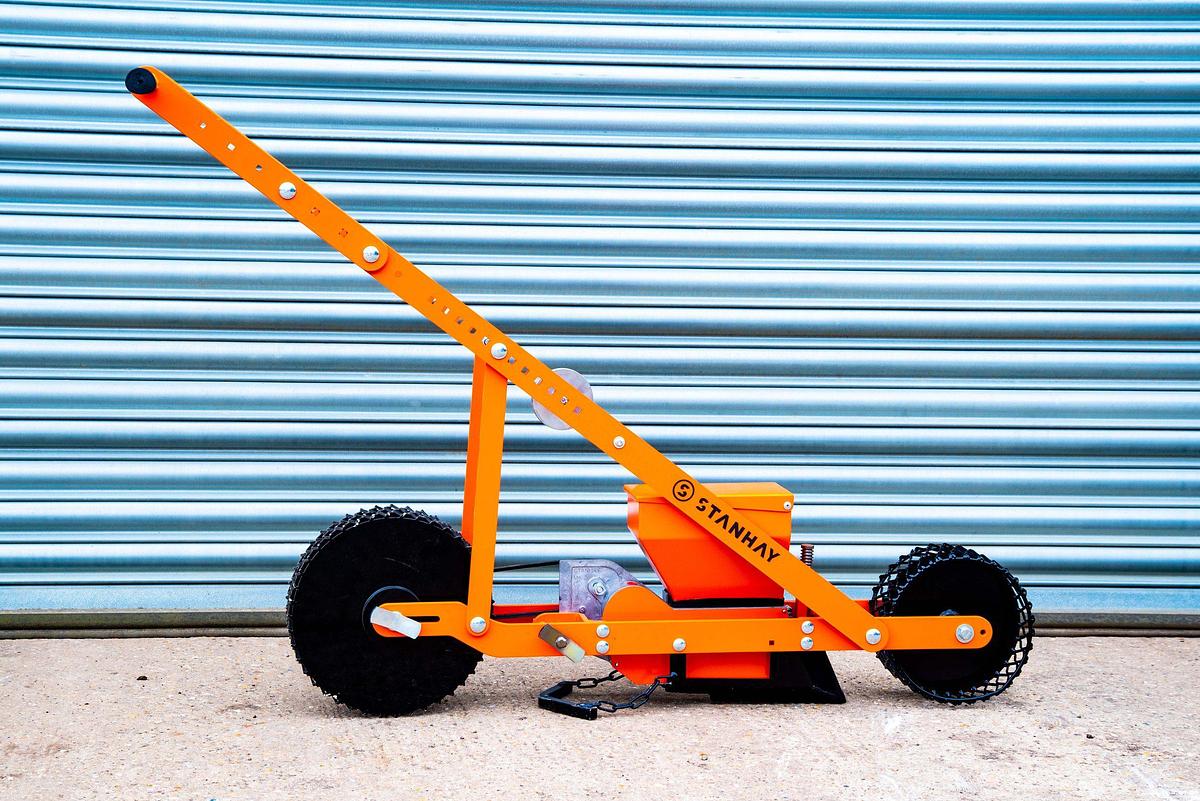

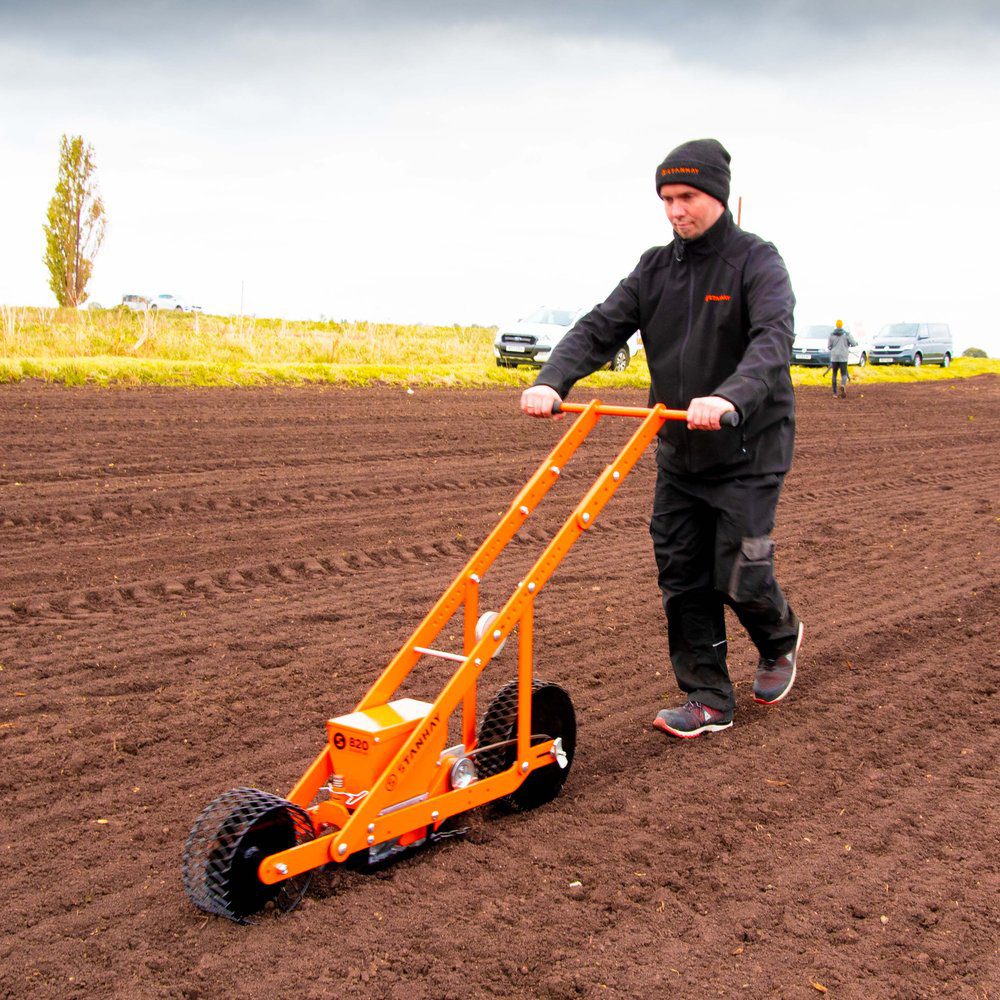

Redesigned in a lightweight aluminium frame for 2022. The highly versatile 820 Handpush is designed for planting small areas and quantities of seed at a time. The large diameter rear cage wheel and ergonomic handles makes it easy to push. The four speed pulley drive gives four seed spacings per seed belt.

The metering unit accurately places seed in the ground with the minimum of damage as every moving part is rubber covered. Seeds in the hopper fall past the choke A which regulates the quantity of seed in the chamber. The seed belt B is rotated clockwise by the drive wheel C while the repeller wheel D rotates anticlockwise to remove excess seed away from the holes in the belt only allowing the required amount to drop through at the end of the spring base E. The seed drop into the bottom of the furrow is only 25mm minimising bounce or roll of the seeds.
